Product Name：Box beam welding machine
Product No.：
YTW-12
Tel：86-510-83051530
E-mail：info@yizhouhj.com
Add：Shengli Road, Yangshan
Industrial Park, Huishan District, Wuxi City, Jiangsu Province, China
Fax：86-510-83051530
YTW-12

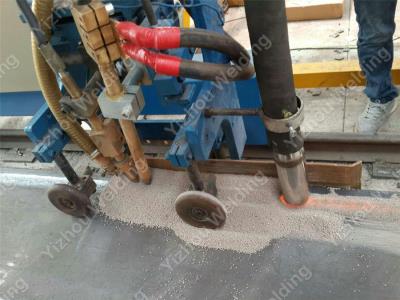

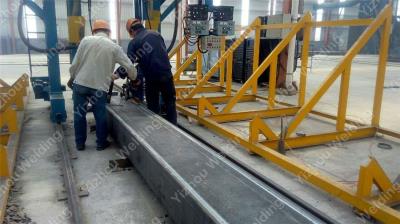

There are gantry type and cantilever type.Welding can adopt single wire,twin-wire or triple-wire.it fulfills the automatic sub arc welding of box beam after finishing electro-slag welding,which has the features of high efficiency,stable and reliable quality,digital display of welding speed and variable frequency adjustable.
Model | Gantry type | T type | Cantilever type | |||
YGW12 | YGW15 | YTW12 | YTW15 | YCW12 | YCW15 | |
Suitable box beam size(mm) | 300-1200 | 300-1500 | 300-1200 | 300-1500 | 300-1200 | 300-1500 |
Suitable box beam length(mm) | 4000-15000 | |||||
Welding speed(m/min) | 0.24-2.4 | |||||
Rail span(mm) | 4000 | 5000 | 1600 | 2200 | 1400 | |
Back and forth welding | √ | |||||
Welding system | America Lincoln/Sweden ESAB/Chinese zhenzhong | |||||
Flux recycle system | √ | |||||
Wire size(mm) | 1.6/3.2/4/5/6 | |||||
Welding way | Sub arc welding(single wire, double wire, triple wire) | |||||
Horizontal type wire reel | √ | |||||
Suitable beam type | H/Box beam | H/Box beam | Box beam | |||
